Product Details:
|
| Model: | HPV110+HMF110 | Type: | Hydraulic Components |
|---|---|---|---|
| Drive Mode: | Hydraulic | Material: | Cast Iron |
| Application: | Corn Overhead Sprayer Hydrostatic Transmission | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Rotary Tillage Machinery Hydrostatic Transmission Higher Reliability |
| High Light: | Sprayer Hydrostatic Transmissio,Hydrostatic Transmission Work Fast,Corn Overhead Sprayer Hydrostatic pump |
||

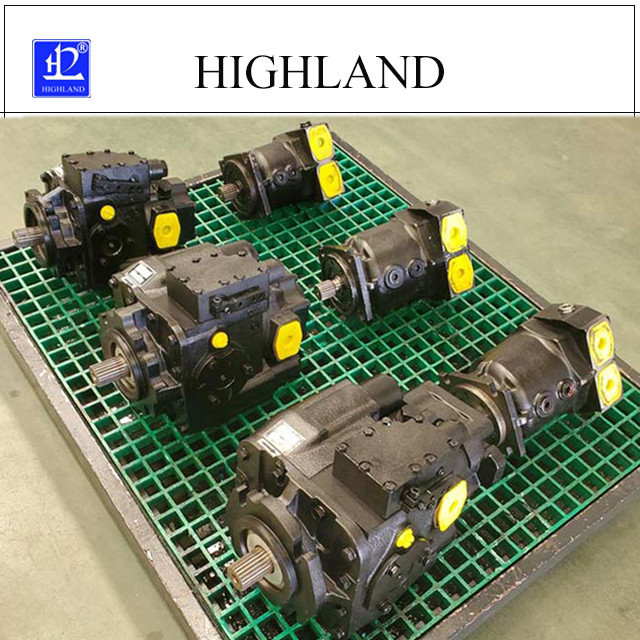

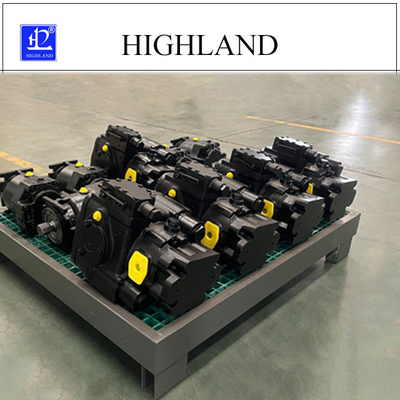

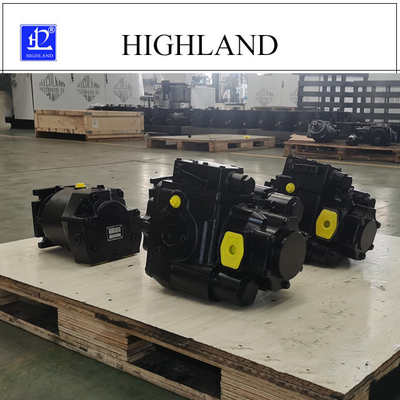

Corn overhead sprayer hydrostatic transmission work fast
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model HPV110+HMF110
· Hydraulic system power components
· Principle hydraulic transmission
· Drive mode hydraulic
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application corn overhead sprayer hydrostatic transmission
· 1 year warranty
Description:
Specifications:
Corn overhead sprayer hydrostatic transmission features:
Corn overhead sprayer hydrostatic transmission can be connected with other additional pumps.
When corn overhead sprayer hydrostatic transmission operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Upon release of the control handle, swash plate return to zero position automatically and the flow reduces to zero.
Hydraulic piston pumps have shaft oil seals performance, even at the lowest temperature and high case pressure.
HPV+HMF Series Technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank system is 2000 hours, and more often if the hydraulic oil is contaminated with water or other external materials or subjected to abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be replaced every spring or every 1500 hours (whichever occurs first) on a sealed tank system, or in an open tank system with an air filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for maximum cooling and system efficiency, and the exterior of the heat exchanger is checked daily for blockages and cleaned as needed.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ:
Q1. Can I have a sample order for corn overhead sprayer hydrostatic transmission?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for corn overhead sprayer hydrostatic transmission?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for corn overhead sprayer hydrostatic transmission?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
