Product Details:
|
| Product Model: | MYHT-1-5 | Flow Range: | 0-500l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Hydraulic System |
| Color: | Silver Color | Product Name: | Hydraulic Flow Meters For Hydraulic System |
| High Light: | small size Hydraulic Flow Meters,Fault Diagnosis Hydraulic Flow Meters,500l/min in line hydraulic flow meter |
||
Ideal tool hydraulic flow meters for hydraulic system fault diagnosis
Hydraulic flow meters for hydraulic system basic information:

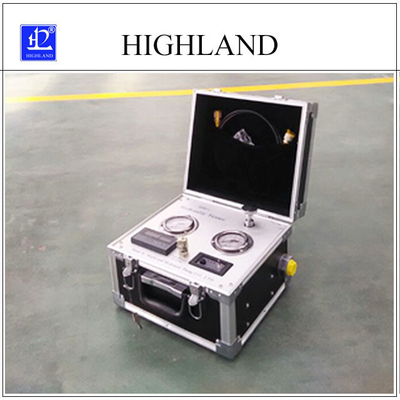

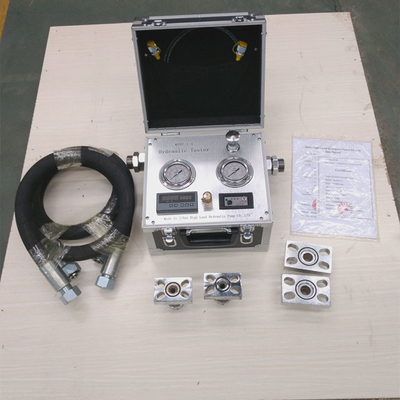

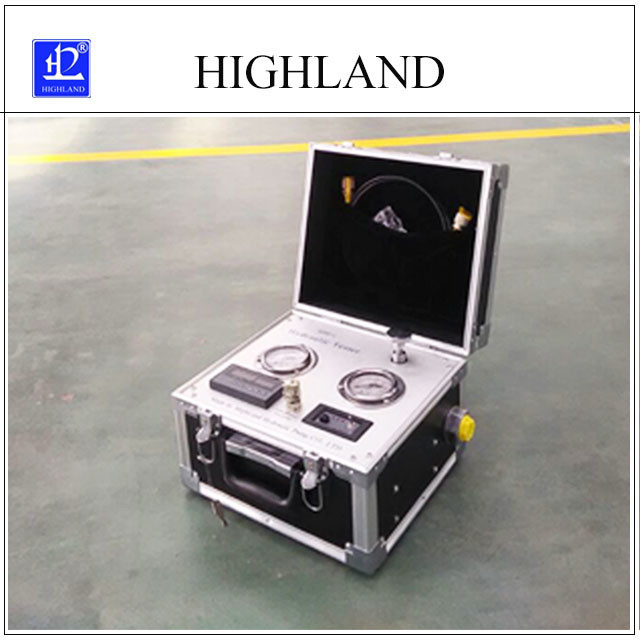

The MYHT digital portable hydraulic flow tester is an all-in-line unit designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions. The easy-to-use design allows the operator to just switch and test, without complex setup or special training.
The MYHT is the ideal tool for pinpointing hydraulic system fault diagnosis, reducing working time, and helping in preventative maintenance.
Hydraulis system hydraulic flow meter main features:
- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
Hydraulic flow meters for hydraulic system technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Note of Hydraulic flow tester:
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
